Fortuna 3,85m

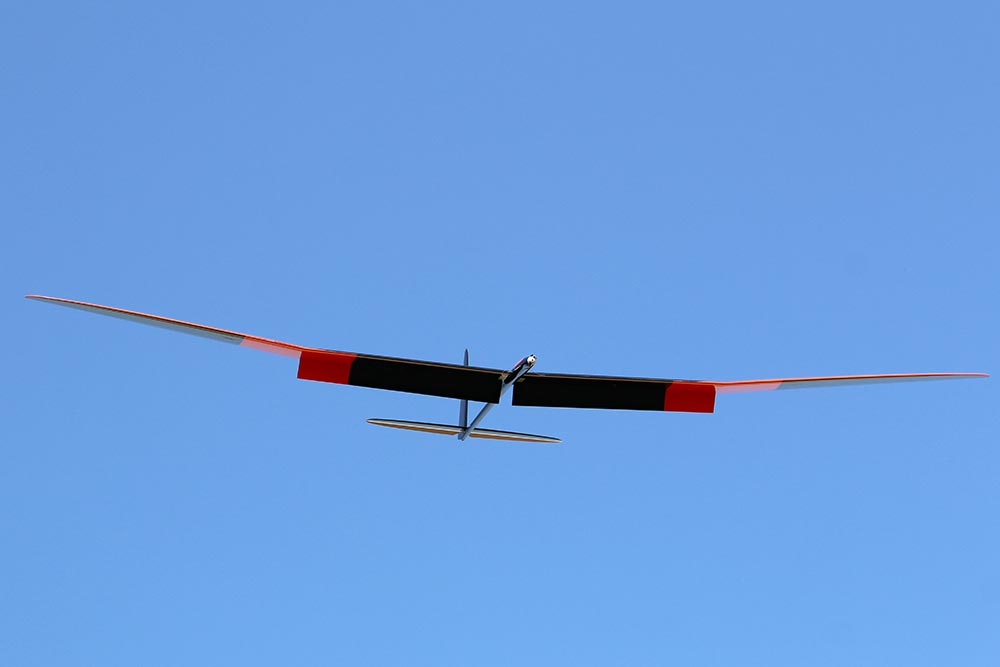

BIG FLAPS:

We would like to introduce you to a new Fortuna competition model. It is perfect for flying in the F5J category. The model is also suitable for light thermal flying (Thermal Circling). At the F5J Loire Valley France competition in  2018 (July), Vojtech Valenta placed in the 5th place!

The model is made of special carbon fabric technology (sandwich technology "Schalenbauweise"). The elevator and the rudder are made as a pressurized carbon core molding. Full-Core Carbon Spread-Tow Technician

The model is supplied in three weight flight and strength variants and versions:

Flying weights:

X-Light version 1300 g (X-tail or V-tail , standard flaps or big flaps)

Multi Purpose 1500 g (X-tail or V-tail , standard flaps or big flaps)

Heavy 1780 g  (X-tail or V-tail , standard flaps or big flaps)

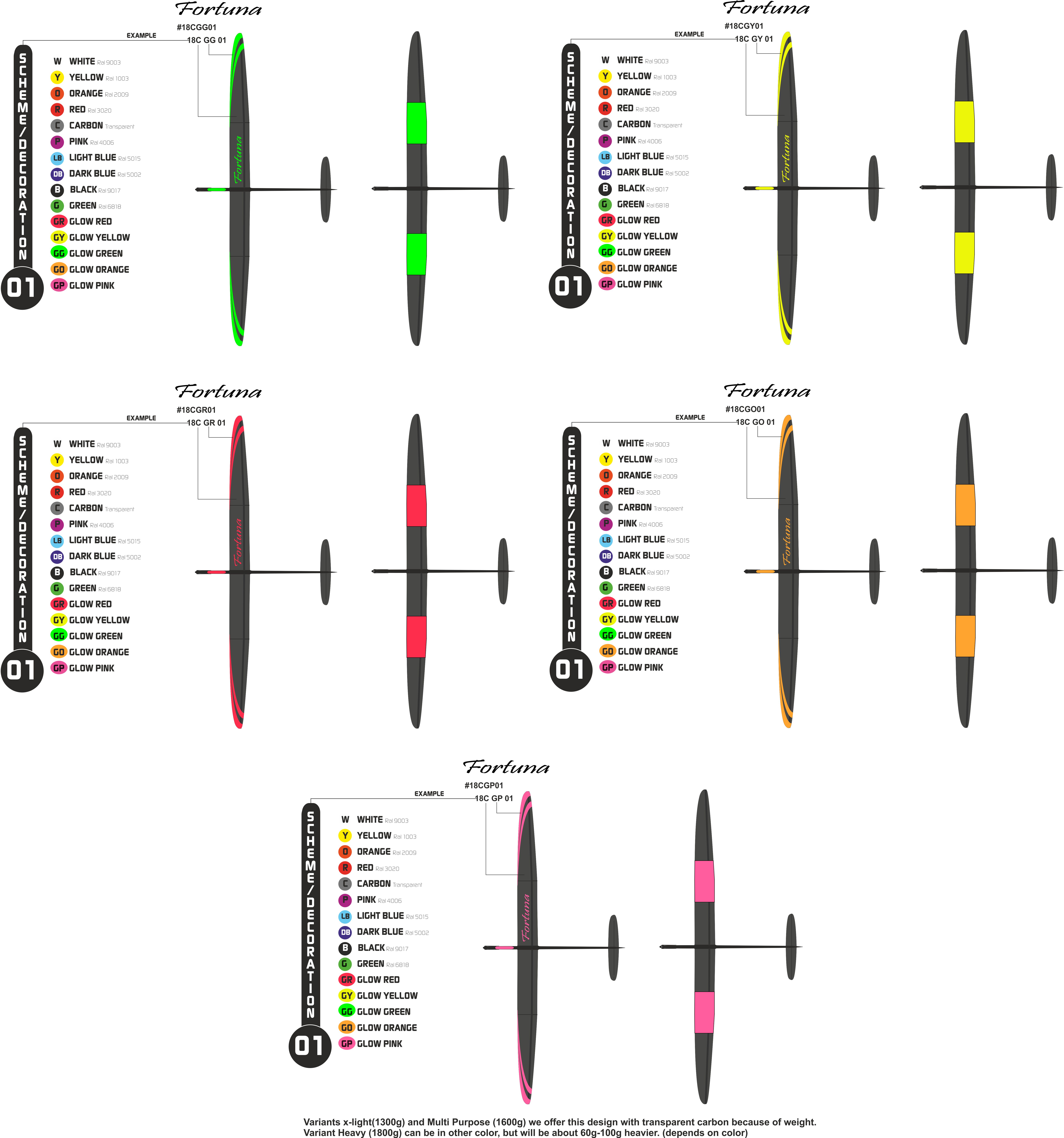

Color design of transparent carbon model with color elements in fluo shades.

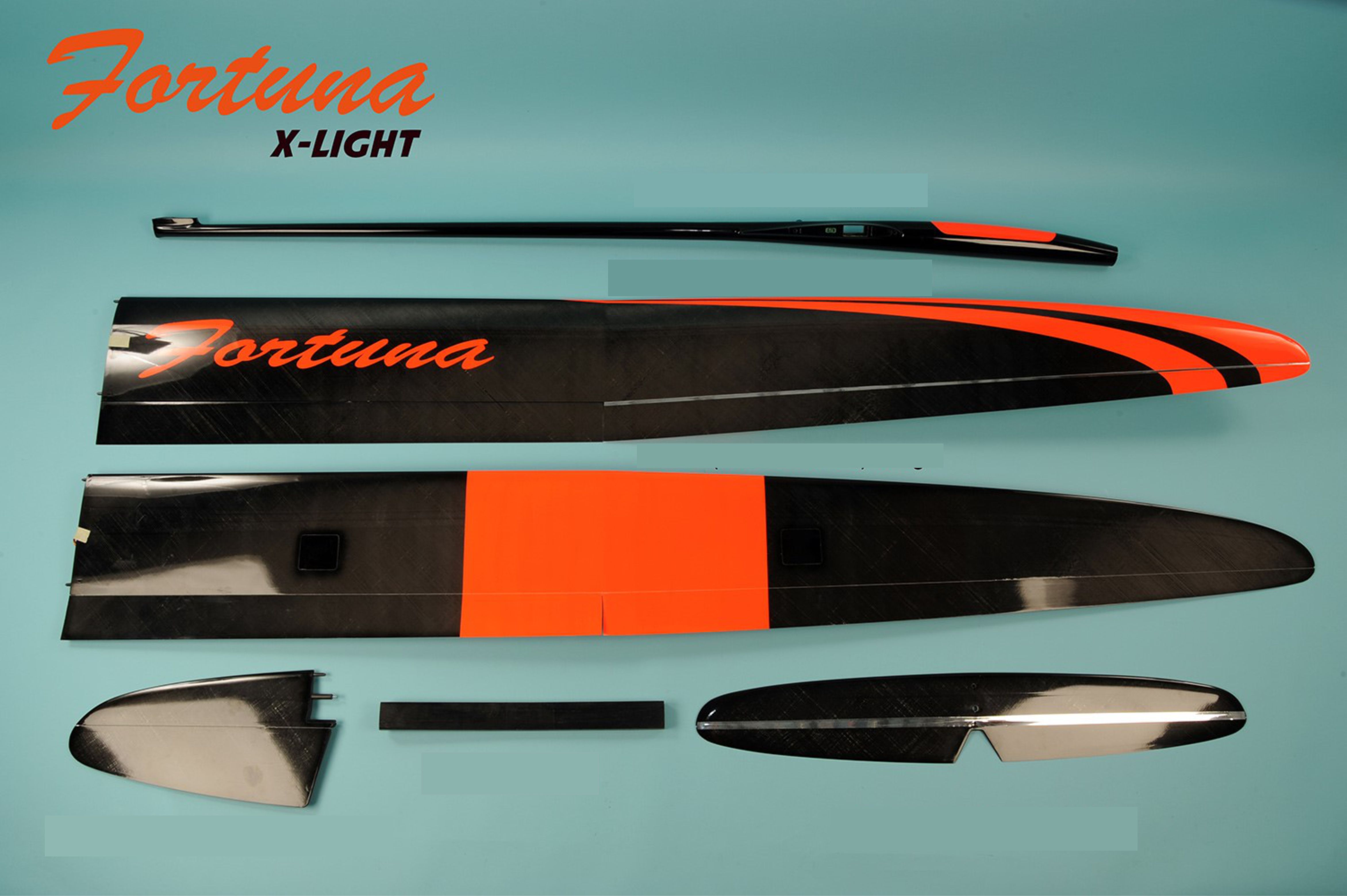

The model is delivered in varying degrees of perfection. Either as a basic kit or as a fully built-in .



  • Fuselage: Molded in carbon. Flexible plastic/carbone pushrods installed. All airframe geometry already done for you at the factory.
  • Carbon molded canopy with carbon rod attachment system ready.
  • Two-part wingsAll molded construction Carbon STF (Spread Tow Fabric) 24g/m² Fabric Sandwich Herex® 50g/m², painted in the mold. Ailerons and flaps control surfaces ready (LDS system).
  • Vertical empennage:  All molded construction, Foam Core covered with Carbon STF (Spread Tow Fabric) 24g/m² Fabric. Rudder control surface finished ready. Fiberglass Horn for rudder control installed at the bottom of the rudder.
  • Horizontal empennage:  All molded construction, Foam Core covered with Carbon STF (Spread Tow Fabric) 24g/m² Fabric ready. Tube/Horn for elevator control installed.
  • Wing joiner: Rectangular with diehedral integrated, carbon hollow molded.
